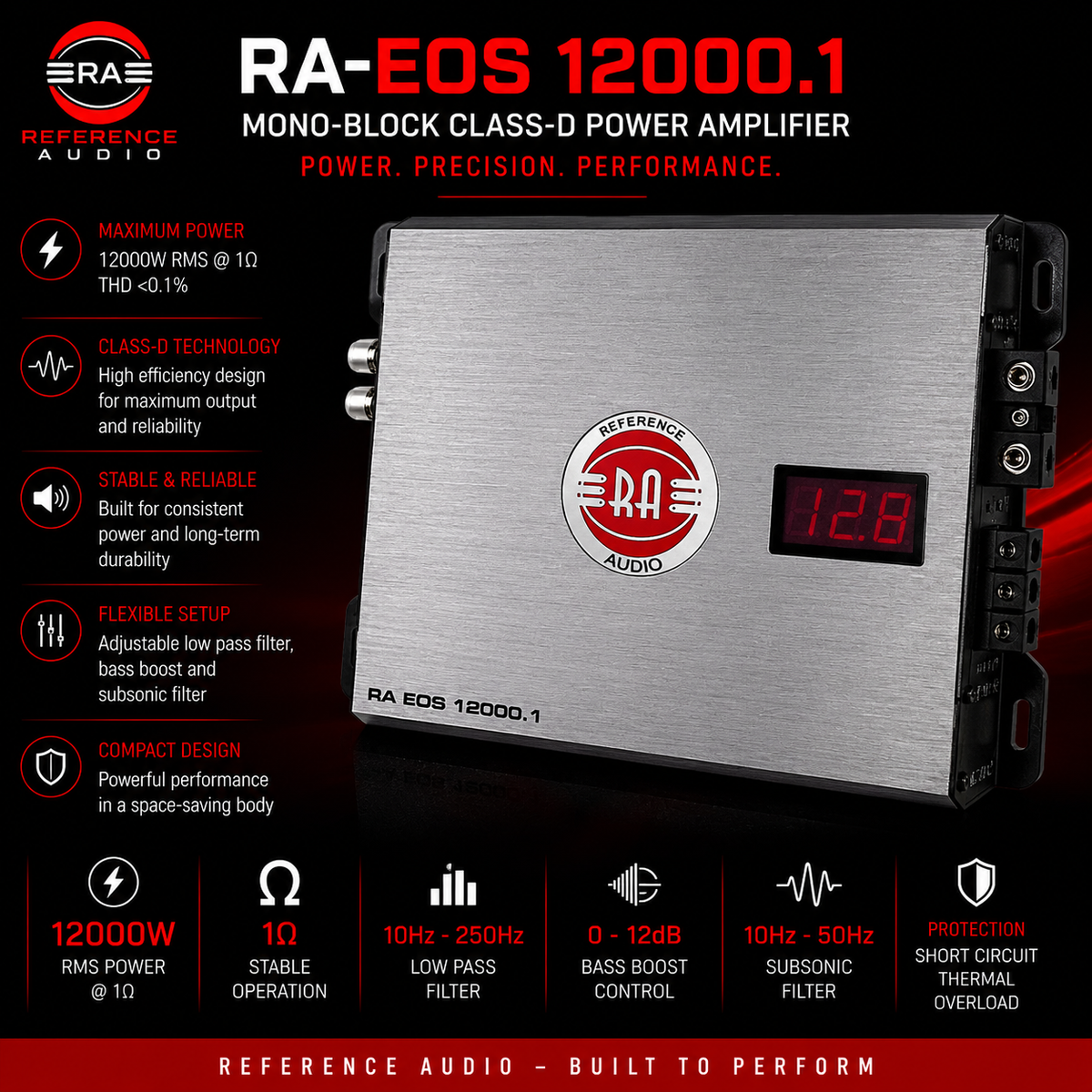

Reference Audio EOS 12000.1 – Compact Mono-Block Class-D Power Amplifier

The Reference Audio EOS 12000.1 delivers serious power in a compact footprint. This mono-block Class-D amplifier combines efficient design with high output capability, making it ideal for dedicated subwoofer systems or full-range applications where space is limited. Built on Class-D topology, the EOS 12000.1 minimizes heat generation while maximizing power delivery. The compact chassis integrates seamlessly into tight installation spaces without compromising performance or thermal stability. Perfect for car audio enthusiasts seeking reliable amplification with a premium build quality and straightforward integration into existing systems.

Product Details

• Power Output: 1000W @ 4Ω / 2000W @ 2Ω / 3000W @ 1Ω
• Frequency Response: 10Hz – 20kHz full range
• High Efficiency: 91% @ 4Ω load
• Compact Size: 202 x 56.5 x 196 mm footprint
• Class-D Design: High-output performance with minimal heat generation
• Crossover Controls: Adjustable low-pass (90Hz–20kHz), subsonic (10Hz–1kHz), and bass boost (0–12dB, 30Hz–70Hz)
• Protection Systems: Thermal, overload, short-circuit, and clipping LED protection
• Minimum Impedance: Stable at 1Ω for maximum flexibility
• Input Range: 4mV – 8V low-level inputs
• Heavy-Duty Power Input: 0 AWG compatibility for high current demands
• Built for Competition: Rugged construction with premium-grade internals
